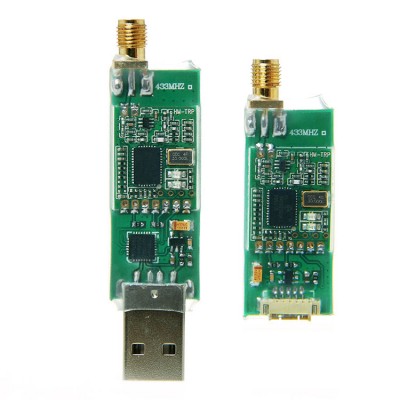

XZN 433MHZ 915MHZ 3DR Radio Telemetry Kit

Ask a question SKU:WER-U-0594 Sold:10 Weight:0.1Kg
In stock, usually dispatched in 1-2 business days
Price: US$24.50
US$24.50
Shipping:
Return Policy:
No return necessary if product not as described, agree refund with seller View details
Seller Guarantees:
  • Click to Verify - This site has chosen an SSL Certificate to improve Web site securityClick to Verify - This site has chosen an SSL Certificate to improve Web site security
  • This site is protected by Trustwave's Trusted Commerce program
  • SGS No.: QIP-ASR144057
    Supplier Name: Shanghai Wer-China Industry Co., Ltd.

New Products  [more]

  • Product details
  • Shipping methods
  • Payment methods
  • Transaction History

The 3DR Radio Telemetry of 3D Robotics is an ideal module to set the remote sensing connection module between APM and ground station. It features small volume, cost effective, wider transmission range, and it allows us to do things that other data transmission modules can’t do.



Features:

1.Very small volume

2.Selectable operating frequency: 915MHZ 433HZ

3.Receiving sensitivity: -121 dBm

4.Transmission power :20 DBM (100 mw)

5.Transparent serial links

6.Air data transfer rate is as high as 250 KBPS

7.MAVLink frame protocol and status report

8.Frequency-hopping spread-spectrum (FHSS)

9.Adaptive Time Division Multiplex (TDM)

10.Support LBT and AFA

11.Configurable duty ratio

12.Built-in error correction code (can correct up to 25% of the data error)

13.Transmission range can reach miles with the small Omni-directional antenna

14.Use bilateral amplifier to gain greater scope

15.AT command deploys data transmission

16.RT command remotely deploys data transmission

17.self- adapt to the flow control when used with APM

18.Based on HM - TRP wireless module, equipped with Si1000 8051 micro controller and the Si4432 radio module.

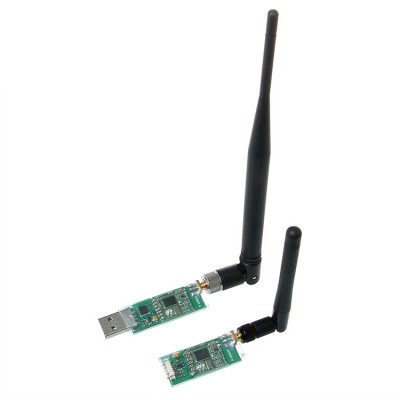

19.The Master collocates with long antenna and the Slave collocates with a short antenna to reduce the load of the aircraft.



Package list:

1 X 433MHZ/915MHZ 3DR Radio Telemetry Kit



For more information, please kindly check our wiki page.

XZN 433MHZ 915MHZ 3DR Radio Telemetry Kit
