Iduino UNO 328 with Atmega328p pu compatible with Arduino IDE

Ask a question SKU:WER-U-0515 Sold:10 Weight:0.08Kg
In stock, usually dispatched in 1-2 business days
Price: US$9.00
US$9.00
Shipping:
Return Policy:
No return necessary if product not as described, agree refund with seller View details
Seller Guarantees:
  • Click to Verify - This site has chosen an SSL Certificate to improve Web site securityClick to Verify - This site has chosen an SSL Certificate to improve Web site security
  • This site is protected by Trustwave's Trusted Commerce program
  • SGS No.: QIP-ASR144057
    Supplier Name: Shanghai Wer-China Industry Co., Ltd.

New Products  [more]

  • Product details
  • Shipping methods
  • Payment methods
  • Transaction History

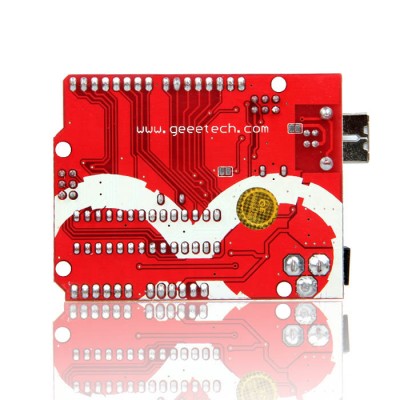

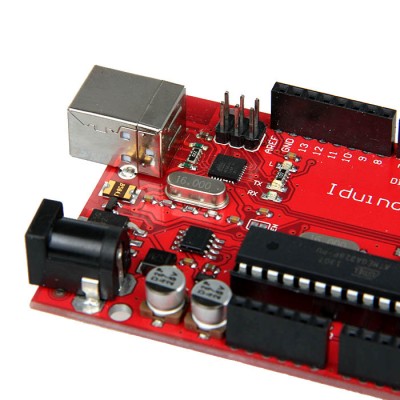

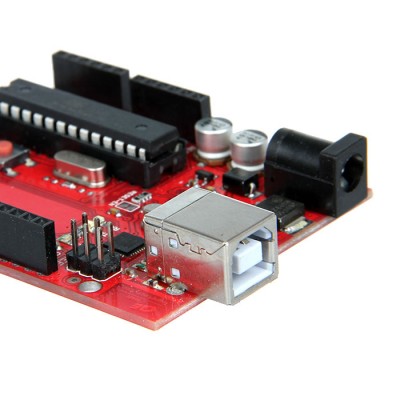

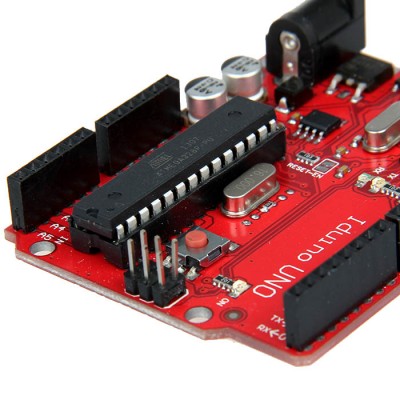

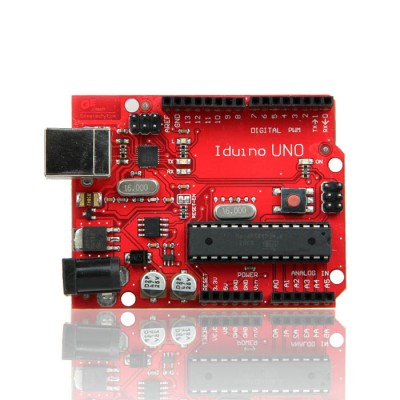

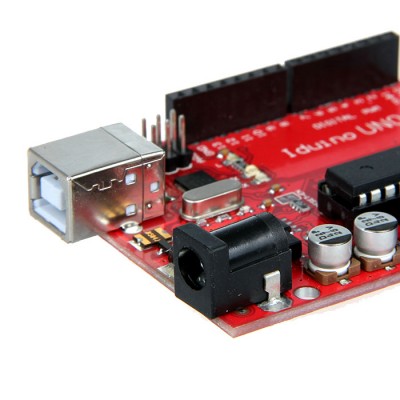

The Iduino Uno is a microcontroller board based on the ATmega328 (datasheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The Uno also adds SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the Arduino Due that operate with 3.3V. The second one is a not connected pin, that is reserved for future purposes.Besides,the board has stronger RESET circuit.



Summary

Microcontroller ATmega328

Operating Voltage 5V

Input Voltage (recommended) 7-12V

Input Voltage (limits) 6-20V

Digital I/O Pins 14 (of which 6 provide PWM output)

Analog Input Pins 6

DC Current per I/O Pin 40 mA

DC Current for 3.3V Pin 50 mA

Flash Memory 32 KB (ATmega328) of which 0.5 KB used by bootloader

SRAM 2 KB (ATmega328)

EEPROM 1 KB (ATmega328)

Clock Speed 16 MHz

EEPROM 1 KB (ATmega328)

For more information about this product, please check our WIKI Page.
