Arduino Mega-ADK

Ask a question SKU:WER-U-0508 Sold:10 Weight:0.12Kg
In stock, usually dispatched in 1-2 business days
Price: US$65.00
US$65.00
Shipping:
Return Policy:
No return necessary if product not as described, agree refund with seller View details
Seller Guarantees:
  • Click to Verify - This site has chosen an SSL Certificate to improve Web site securityClick to Verify - This site has chosen an SSL Certificate to improve Web site security
  • This site is protected by Trustwave's Trusted Commerce program
  • SGS No.: QIP-ASR144057
    Supplier Name: Shanghai Wer-China Industry Co., Ltd.

Recently Viewed

New Products  [more]

  • Product details
  • Shipping methods
  • Payment methods
  • Transaction History

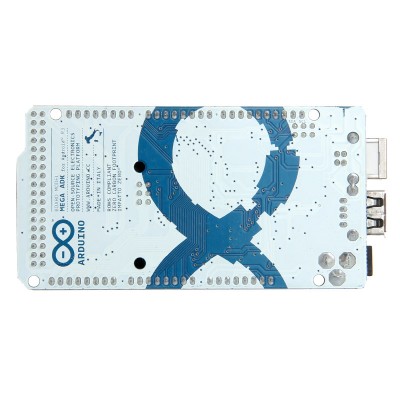

The Arduino ADK is a microcontroller board based on the ATmega2560 (datasheet). It has a USB host interface to connect it with Android based phones, based on the MAX3421e IC. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.The ADK is based on the Mega 2560.

Similar to the Mega 2560 and Uno, it features an ATmega8U2 programmed as a USB-to-serial converter.
Revision 2 of the MegaADK board has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode.



Package list:

1x Arduino ADK



Download:

EAGLE files: Arduino_ADK-Mega_2560-Rev3-reference-design.zip

 Schematic: Arduino ADK_Mega_2560-schematic.pdf

 Pin Mapping: PinMap2560 page



For more information, please kindly check our wiki page
