A3 EP2000UV Gifts Pendant LED UV Flatbed Printer（production halts）

Ship to:
Currencies:
Submit

Product details
Shipping methods
Payment methods
Transaction History

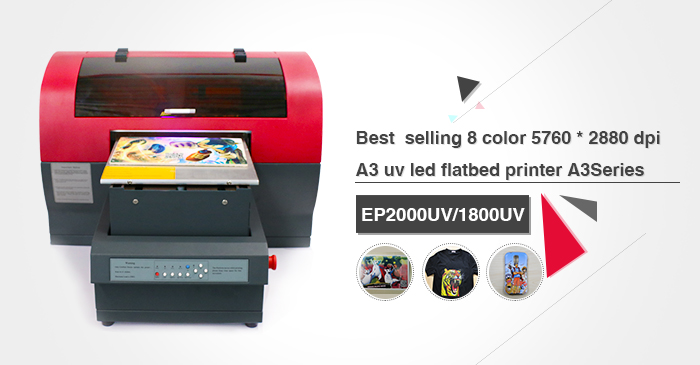

A3 EP2000UV Gifts Pendant LED UV Flatbed Printer

Printer Model	UV LED A3 EPSON JET EP2000T
Printing tech	Micro Piezo Technology
Nozzle number	1440
Max print size	12.9523.62 inch (329600mm)
Print resolution	5760*2880 dpi
Max Material Thickness	85mm
max print thickness	8cm
Print quality	True Photographic quality
Printing Direction	Smart Bi-directional Printing Mode
Printing speed	720 dpi 25 seconds/A4 size
	1440 dpi 50 seconds/A4 size.
	2880 dpi 110 seconds/A4 size.
Cooling Method	Water cycling Cooling system
Auto adjustment function	Nozzle automatic detection; print head automatic aligning
Applicable industry	Rigid PVC board, glass, plastic, organic board, leather, rubber, special paper, metal, wood, porcelain, PVC, ABS, acrylic, aluminum, iron sheet, ceramic tile, glass, marble, granite, paperboard etc
Operating system	Windows XP/ME/Vista/Win7/MAC
Interface	Double USB port
Languages	English, Chinese.
Ink colors	UV LED curing ink
Lamp type	LED Lamp (saving energy and environmental friendly)
Ink system	CISS built inside
Height adjustment	Automatic with sensor.
Driving power	110 V/ 220 V.
Power consumption	136 W/ Hour.
Ink consumption	10 ML/SQM.
Working environment	10-35 Celsius
Software	Photoshop, CorelDraw, Illustrator, WER RIP,
Media feeding system	Auto or Manual

Product Details

DX5 Printhead

Instruction: Epson DX5, Resolution: 1440DPI
Color: 4 colors
Print mode: 4, 6, 8, 12 Pass

Notes:
A: Operators need to make antistatic treatment, please wear the Anti-static devices if permission, to prevent the high static load from burning the circuit board inside printhead
B: During installation, try not to directly touch the surface of printhe

Epson Stylus Pro 1800 Main board

Connection Type：USB2.0

Function: The machine signal processing board power supply
Features: high anti-static USB port, strong and stable, more secure

Precautions:
a. When the installation process, turn off the power, signal cable is connected correctly and firmly
b. All the power connector has a special design, easy installation

Epson Stylus Pro 1800 Main board

Connection Type：USB2.0
Function: The machine signal processing board power supply
Features: high anti-static USB port, stable and strong, high-performance, more secure

Precautions:
a. Before installing do In addition to electrostatic processing
b. When the installation process, turn off the power , signal cable is connected correctly and firmly.

Epson Stylus Pro 1800 Ink Bottle

Water tank: Usage: store water Car coolant
Voltage: 220V
Function: cool UV lamp

Refillable ink description: Epson Stylus Pro 1800 Ink Bottle
For ink: CISS (ink bottle, ink tubes, nozzles)
Color: 5 colors
Features: Dustproof, avoid light,refillable

Precautions:
a. for the first time will consume part of refilling ink, the ink should be checked whether sufficient or not
b. refilling process, followed by the corresponding ink label ink, the ink is added to each of the ink bottle to capacity 80%

Epson Stylus Pro 2000 Control Panel

Refillable ink description : Epson Stylus Pro 2000 Control Pane

Operation: a key line
Features: reflect machine working condition

Precautions:
a.On the process of operation, to avoid wrong operation buttons

Packing & Delivery:

Net Weight	100 KGs
Gross Weight	150 KGs
Package type	To be packed with Timber with fumigation certificate
Package size LWH	1100860720 MM
MOQ	One set per order
Delivery	7 working days after receiving the deposit
Payment Terms	T/T; 40% first, the balance against B/L's copy; L/C, Escrow, Paypal etc.
Special remarks	Customized service is available.

Excellent After-sale Services:

1.One year warranty

You can discuss operation and maintenance with our technician online support service by Skype, MSN etc. Remote control will be provided upon request.

2. Free exchange of new components

Our quality is guaranteed 100%, the spare parts can be replaced within one year free of charge includes the airfreight by express, except for the print head and some consumable parts.

3. Free online consultation

The technician will keep online. No matter what kind of technical questions that you may have, you would get a satisfactory answer from our professional technician easily.

4. Free onsite installation and training

If you are able to help us with getting the visa and also would like to bear the costs involved like flight tickets, food, etc, we can send our technician to your office, and to give you a free installation and training for as long as you know how to operate it

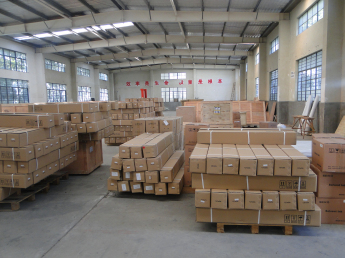

Factory Show
