3.3M SD Series Synchro Double Side Large Format Solvent Konica Printhead Printers

Adopting printhead Konica-512 42pl,high resolution which is near photo quaility.

Double side printing can print sameness image on both side. For instance, it can print same image on both side of Flex Banner or print different image on both sides of flag media. With the international invention patent and many years of experience, it's the unique synchro double side large format printer in the world. Other double side Large Format Printer is incomparable with our 100% calibration. 0% waste, easy printing process.


Synchro double side printing Multi- function double printing value:
 1) image on both side, light-box making, 100% fresh color keeping.
 2) Different printing image on both sides, top grade banner making, viscidity process saves, appreciation improving.
 3) Single side printing realizes high speed and resolution making of front-lit media.

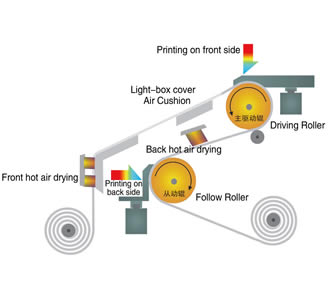

International advanced accurate calibration function:
 1) Printing media enlaced on two rollers with S shape, media steps with the roller as well as printing simultaneously.
 2) Single media feed structure and clutch device guarantee data accurate media step.
 3) FPGA control system which based on raster position guaranteed date transmission of image both sides
 4) PTC high-effective air-dry system guarantee fast dry of printed media.
 5) The light and observation window in the front of the machine guarantee back side printing observation during printing.


Our Synchro Double Side Printer produces real, synchrony, printing easily double side, and without special requirement on quality and length of the media; cutting is possible while printing.



Model

8PS Printheads

12PS Printheads

16PS Printheads

24PS Printheads

Print Head

Konica512-42pl

No. of printheads

8PCS

12PCS

16PCS

24PCS

Resolution

up to 720dpi / 1400dpi

Color

CMYK OR CMYKLcLm

Single-sided Print Speed

23m2 / h

18m2 / h

46m2 / h

36m2 / h

Double-sided Print Speed

22m2 / h

11m2 / h

42m2 / h

20m2 / h

Print Width

126.0" (3200mm)

Media Width

130.0" (3300mm)

Technology

Piezoelectric

Operation Environment

Temperature 20°C-28°C, Humidity: 40%-60%

Ink

Solvent ink

Interface

USB2.0

RIP

PHOTOPRINT Or Caldera

Control Station

Windows 2000/XP WorkStation

Media Types

Paper, advertising banner, PVC, mesh fabrics, vinyl, carpet, etc.

Image data format

JPG, TIFF, EPS, PDF

Power

Single Phase, AC 220v, 50Hz/60HZ, 3000w for control power
